       The NIR-01 imaging system is made of CNC engineered Aluminium alloy. The suruface protection is powder painting and electrolitic oxidation on pure aluminium surfaces. The frame of the system is a high quality industrial design. All components are designed for long term heavy usage with minimal maintenance needs. Electrical components are also selected for stability and durability. The block like electronics gives the advantage of easy and quick repair.

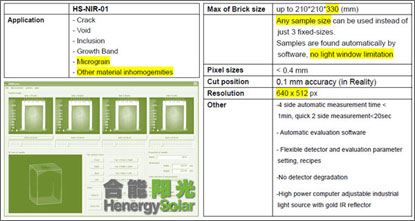

Product’s feature:

■Frame and Casing

    -Dimensions: 143x53x55 (WxDxH) " Frame is CNC engineered Aluminium alloy " Frame is covered with electrostatically powder painted aluminium panels " Overall weight of the main unit is 98kgs " Weight of accessories is 25kgs.


■Rotating stage

    -moved by 1 axis servo motor system " max. load 45kg " overcurrent protection to prevent injuries or motor burn " step-loss, high resolution encoder

Lightsource [Baratex 09741010-HU]

    -High intensity industrial NIR halogen tube (long lifetime) " Power: 230 VAC, 1000W " Maximum temperature of environment during normal measurement conditions is 60 oC.

    -Light intensity is software controlled " Software overheat protection " Forced cooling option is available


■Detector

    -Temperature stabilized high sensitivity IR sensor array " Sensitivity: 305 photons/ADU in Low Gain " 12 bit ADC @ 60Hz and 100Hz " pixel pitch: 30μm " resolution: 320x256 pixels (doubled mode 640x512) " effective pixel size on target: 0.4mm or lower


■Sample

    -Free sample size upto 210x210x330 mm " One hardware setting handles all block size " Recipes for different surface quality and thickness " Polished/raw surface. Polished surface is recommended for clear results " Detection limit 1Ohmcm (very close to theoretical limit)


■Applications

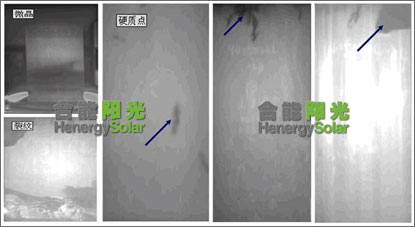

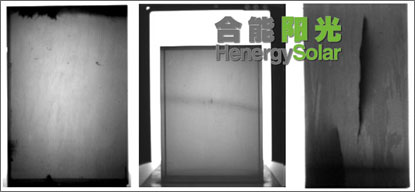

    -Detection of: crack, void, micrograin, inclusion and other matrerial inhomogemities


■Software (Win XP based)

    -4 side measurement with automatic sample finding and scaling possibility "Quick measurement for polished surface samples "Automatic evaluation "Pixel management and enhanced image processing possibilities "Direct detector parameter settings and direct stage control

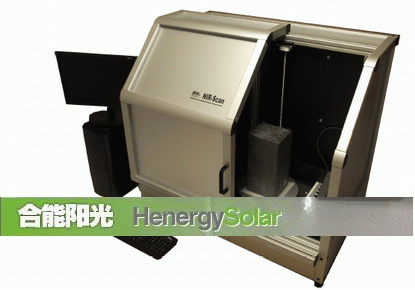

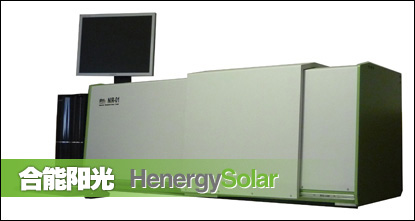

■System photo(typical)

















Typical Customer:

LDK、SAS、EverSol、Daneng、Ferrotec、Huahang、YingliSolar、Haireon、Jolar、Jimei、TianYi、Jinhui、Megaking,ChinaSolar,Siream and so on.
